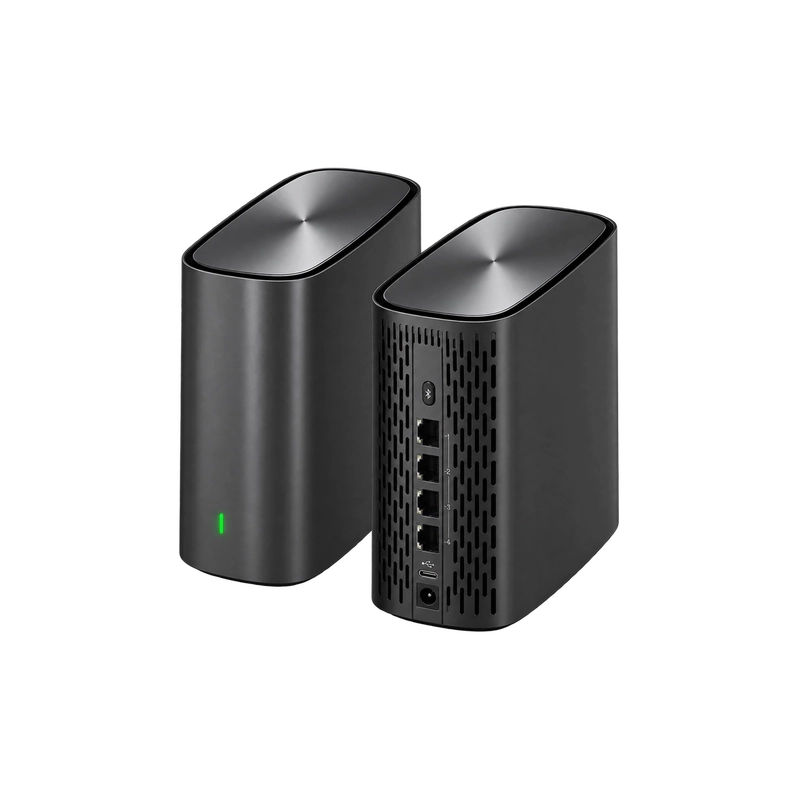

CP190
Features:
- 5G SA/NSA Connectivity: Supports 5G standalone and non-standalone networks with Sub-6 GHz coverage.
- High-Speed 5G Performance: Delivers up to 2.6 Gbps DL and 1 Gbps UL in 5G SA mode.
- Extensive Multi-Band Support: Supports a wide range of global 5G NR, 4G LTE, and WCDMA bands.
- Advanced 4×4 MIMO: Enhances signal reception, network capacity, and wireless performance.
- Dual-Band Wi-Fi 6: Supports 2.4 GHz and 5 GHz IEEE 802.11ax connectivity.
- Flexible FWA Deployment: Ideal for residential broadband, enterprise connectivity, and indoor wireless access.
Specifications:
|
Items |
4/5G |
|
5G Modem |
UNISOC IVY510 |
|
Main Chipset |
Cortex-A55*2 @1.35G |
|
Communication Standard |
3GPP R15 NSA/SA operation, Sub-6 GHz |
|
5G Frequency Bands |
5G NSA: n1/ 3/ 7/ 38/ 40/ 41/ 77/ 78 /79 5G SA: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 66/ 71*/ 77/ 78 / 79 MIMO: DL: 4 × 4 MIMO on n1/ 3/ 7/ 38/ 40/ 41/ 77/ 78 /79 UL: 2 × 2 MIMO on n38/ 40/ 41/ 77/ 78 / 79 DL: 2 × 2 MIMO on n5/ 8/ 20/ 28/ 66/ 71 |
|
4G Frequency Bands |
4G Category: DL Cat 12, UL Cat 13 4G-FDD: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 20/ 28A/ 28B/ 66, 4G-TDD: B38/ 40/ 41 DL 2x2 MIMO: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 20/ 28A/ 28B/ 38/ 40/ 41/ 66 |
|
WCDMA Frequency Bands |
B1/ 2/ 5/ 8 |
|
Celluar Data rate |
5G SA: 2 Gbps (DL)/ 1 Gbps (UL)，5G NSA: 2.6 Gbps (DL)/ 650 Mbps (UL) 4G: 600 Mbps (DL)/ 150 Mbps (UL) WCDMA: 42.2 Mbps (DL)/ 11 Mbps (UL) |
|
Items |
WIFI |
|
WLAN standard |
IEEE 802.11a/n/ac/ax |
|
2.4GHz Wi-Fi |
2×2 (supports up to IEEE 802.11ax protocol, max. 574Mbps) |
|
5GHz Wi-Fi |
2×2 (supports up to IEEE 802.11ax protocol, max. 1201Mbps) |
|
Dual-band |
2.4GHz, 5GHz |
