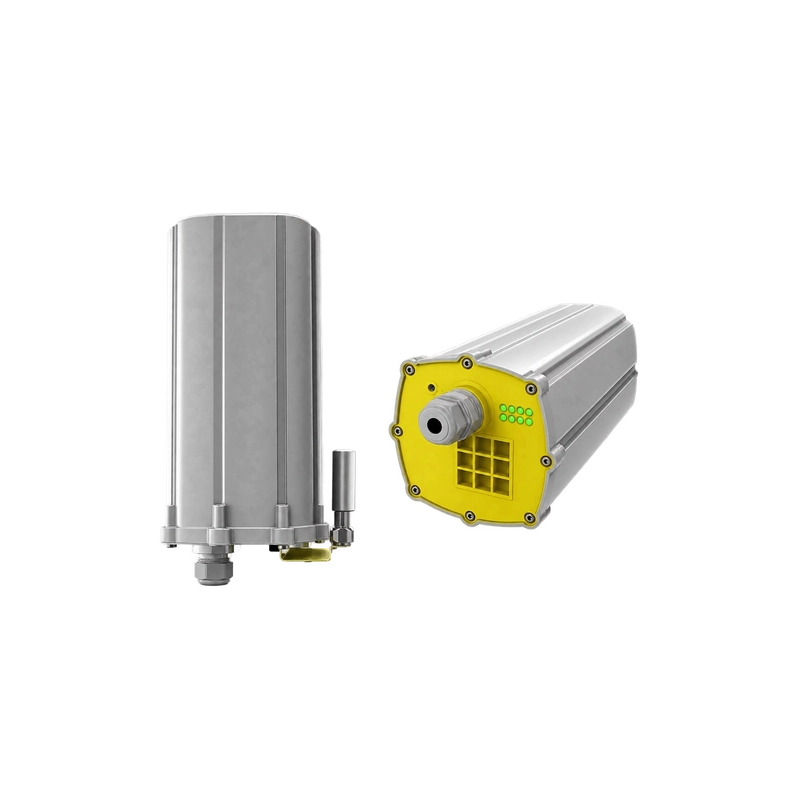

CP090
The SageRAN CP090 is a high-performance 4G/5G Outdoor Customer Premises Equipment (CPE) powered by the UNISOC IVY510 chipset. Supporting 5G SA/NSA, 4x4 MIMO, and multiple Sub-6 GHz frequency bands, it delivers reliable high-speed wireless connectivity and extended coverage. With dual-band Wi-Fi and flexible network compatibility, it is ideal for fixed wireless access (FWA), rural broadband, and outdoor enterprise applications.
Description
Features:
- 5G SA/NSA Connectivity: Supports 5G standalone and non-standalone networks with 3GPP Release 15.
- Extensive Multi-Band Support: Supports multiple 5G NR and 4G LTE bands, including n1/n3/n8/n28/n41/n77/n78/n79.
- Advanced 4×4 MIMO: Supports 4×4 downlink MIMO for enhanced 5G reception and performance.
- Dual-Band Wi-Fi: Supports 2.4 GHz and 5 GHz connectivity with speeds up to 866 Mbps.
- 4G Carrier Aggregation: Supports up to 3CC carrier aggregation for improved LTE data performance.
- Outdoor FWA Deployment: Designed for rural broadband, remote connectivity, and outdoor enterprise applications.
Specifications:
|
Items |
5G/4G |
|
5G Modem |
UNISOC IVY510 |
|
Chipset |
5G/4G: UNISOC IVY510, dual-core ARM Cortex-A55 processor, up to 1.35GHz |
|
RF standard |
5G (3GPP Release 15)；TDD-4G/FDD-4G(CAT12) |
|
Frequency Bands |
5G: N1/N3/N8/N28/N41/N77/N78/N79 4G FDD: B1/B2/B3/B5/B7/B8/B20/B28A/B28B 4G TDD: B34/B38/B39/B40/B41 |
|
DSS Bands |
FDD 5G N1/N3/N8/N28 |
|
MIMO |
5G: DL MIMO 4*4, UL MIMO 2*2；4G: DL MIMO 2*2, UL MIMO 1*1 |
|
TX/RX |
4G: 1T2R；5G NSA: 1T4R；5G SA: 2T4R |
|
CA |
4G CA: 4G 3CC；5G CA: Not Support |
|
Items |
WIFI |
|
WLAN standard |
IEEE 802.11 b/g/n, IEEE 802.11ac |
|
Wi-Fi Frequency |
2.4GHz/5GHz |
|
Wi-Fi MIMO |
MIMO 2*2(2.4G)；MIMO 2*2(5G) |
|
Wi-Fi Channel BW |
20MHz, 40MHz, 80MHz(ac) |
|
Maximum Speed |
2.4G: Up to 300Mbps，5G: Up to 866Mbps |
|
Maximum users |
2.4G Wi-Fi: 32；5G Wi-Fi: 32 |
