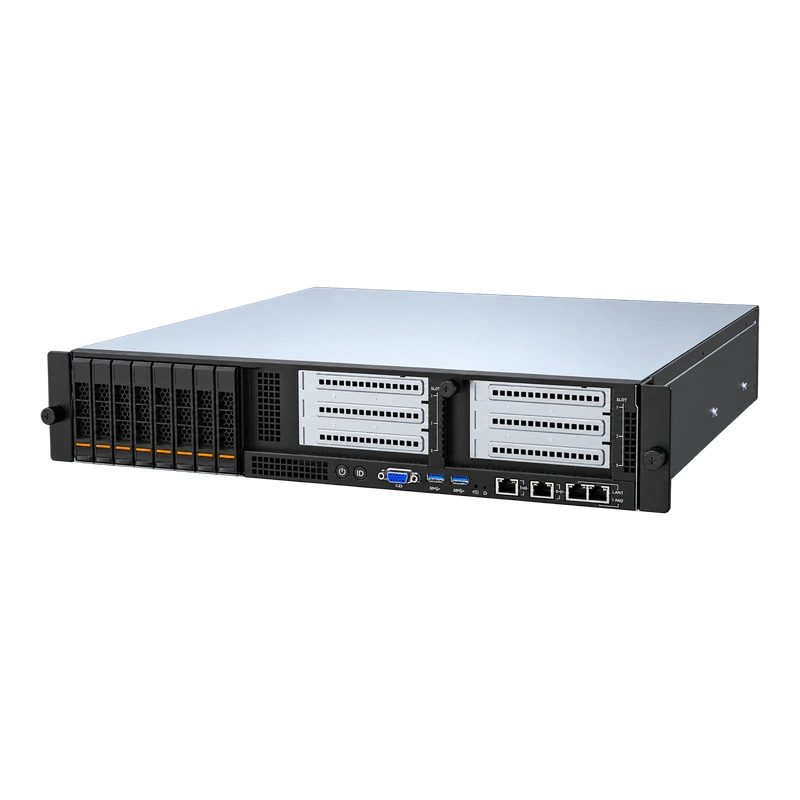

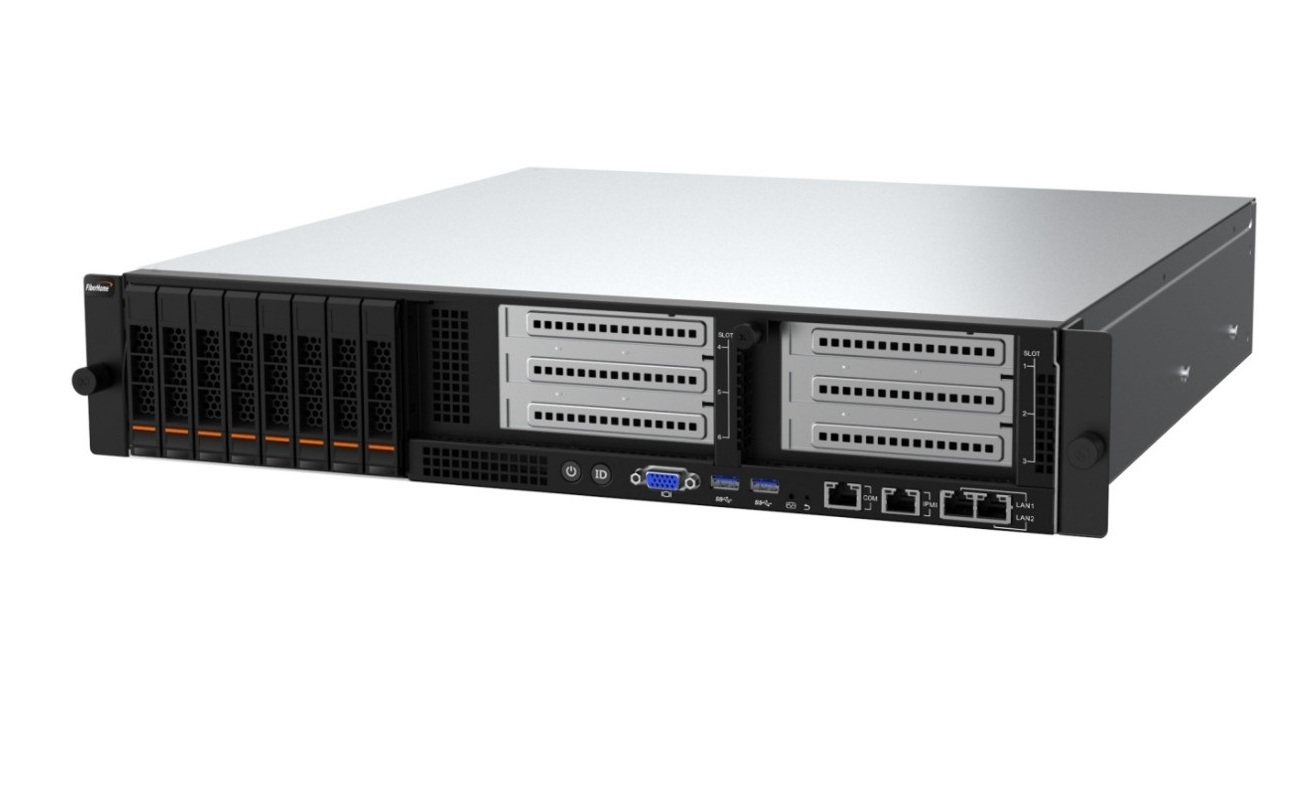

2G GSM BSC

BSS5.6 BSC is a base station controller for GSM radio access networks. Based on a cloud-native containerized architecture, it runs on the Kubernetes platform and works with the MGW media gateway, Gb-proxy Gb interface gateway, and OAM unified network management components to build a complete GSM BSS radio access system. As the core control element on the radio side of a GSM network, the BSC connects downward to BTSs through the Abis over IP interface for radio resource management, channel assignment, and operation and maintenance control. It connectis upward to the MSC through A over IP and to the SGSN through the Gb interface, handling voice call signaling and forwarding GPRS packet data.

Description Features Networking Specifications

Overall Introduction

As the core control element on the radio side of a GSM network, the BSC connects downward to BTSs through the Abis over IP interface for radio resource management, channel assignment, and operation and maintenance control. It connectis upward to the MSC through A over IP and to the SGSN through the Gb interface, handling voice call signaling and forwarding GPRS packet data.

Networking Architecture

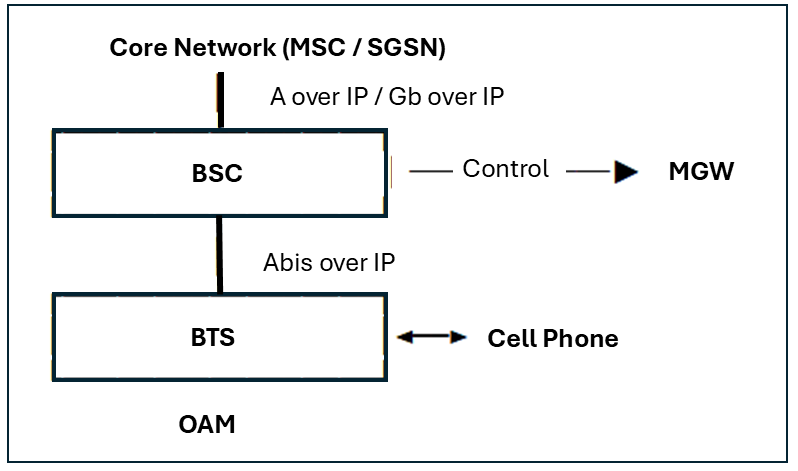

BSC Networking Architecture

Features

Items	Specification
Form Factor	2U dual-socket rack server
Processor	Intel Xeon Silver 4314 @ 2.4 GHz (16 cores / 32 threads)
Memory	16 DIMM slots; supports 3200/2933 MHz DDR4 RDIMM/LRIMM memory
Local Storage	Front panel with 8 * 2.5-inch hot-swappable drive bays, optional support for 4 NVMe drives
Power Supply	2 * 550 W/800 W platinum hot-swappable power supplies as standard, support 1+1 redundancy, supports 220 VAC AC and 336 VDC/240 VDC/-48 VDC DC
Networking	2 onboard 1GE RJ45 electrical ports; optional external Gigabit/10 Gigabit NICs
Ports	USB 3.0: 2, VGA: 1, Management port: 1 front-facing 1GE RJ45 Gigabit management port
Fans	4 rear hot-swappable fans, supports N+1 redundancy
System Management	Independent management interface, supports IPMI 2.0, KVM, SOL, remote control, hardware monitoring, and related functions
Dimensions	86.5 mm * 438 mm * 450 mm (H * W * D)
Operating Temperature	Operating: 5°C to 45°C; non-operating: -40°C to +70°C
Relative Humidity	Operating: 8% to 90%, non-condensing, Non-operating: 5% to 95%, non-condensing

Radio Resource Configuration

Items	Specification
TRXs per BTS	12
Signaling Channels per TRX	1
Traffic Timeslots per TRX	7
Voice Channels per Traffic Timeslot	2 (Half Rate)
Total Voice Channels per BTS	168
Concurrent Calls per BTS	Approximately 118 at 70% simultaneous occupancy

BSC Capacity and Scalability

Items	Specification
BTSs Supported per BSC Server	100
Total TRXs per BSC Server	1,200
Total Voice Channels per BSC Server	16,800
Concurrent Voice Calls per BSC Server	Approximately 11,760 at 70% simultaneous occupancy

Items	Specification
Form Factor	2U dual-socket rack server
Processor	Intel Xeon Silver 4314 @ 2.4 GHz (16 cores / 32 threads)
Memory	16 DIMM slots; supports 3200/2933 MHz DDR4 RDIMM/LRIMM memory
Local Storage	Front panel with 8 * 2.5-inch hot-swappable drive bays, optional support for 4 NVMe drives
Power Supply	2 * 550 W/800 W platinum hot-swappable power supplies as standard, support 1+1 redundancy, supports 220 VAC AC and 336 VDC/240 VDC/-48 VDC DC
Networking	2 onboard 1GE RJ45 electrical ports; optional external Gigabit/10 Gigabit NICs
Ports	USB 3.0: 2, VGA: 1, Management port: 1 front-facing 1GE RJ45 Gigabit management port
Fans	4 rear hot-swappable fans, supports N+1 redundancy
System Management	Independent management interface, supports IPMI 2.0, KVM, SOL, remote control, hardware monitoring, and related functions
Dimensions	86.5 mm * 438 mm * 450 mm (H * W * D)
Operating Temperature	Operating: 5°C to 45°C; non-operating: -40°C to +70°C
Relative Humidity	Operating: 8% to 90%, non-condensing, Non-operating: 5% to 95%, non-condensing

BSC Networking Architecture

Radio Resource Configuration

Items	Specification
TRXs per BTS	12
Signaling Channels per TRX	1
Traffic Timeslots per TRX	7
Voice Channels per Traffic Timeslot	2 (Half Rate)
Total Voice Channels per BTS	168
Concurrent Calls per BTS	Approximately 118 at 70% simultaneous occupancy

BSC Capacity and Scalability

Items	Specification
BTSs Supported per BSC Server	100
Total TRXs per BSC Server	1,200
Total Voice Channels per BSC Server	16,800
Concurrent Voice Calls per BSC Server	Approximately 11,760 at 70% simultaneous occupancy
