Unity™ 4+5G Outdoor Integrated Base Station
SageRAN Unity™ 4+5G Outdoor Integrated Base Station is a highly efficient 4+5G base station designed for outdoor use. It features an integrated 4 and 5G BBU and RRU, and is built with a completely self-developed protocol stack and system software, providing complete 5G NR wireless access functions for users. This compact and easy-to-install product is ideal for 4 and 5G+ vertical industries, such as smart mines and smart parks, as well as suburban and rural areas that require large-scale 4 and 5G coverage.
- Environment-friendly, easy to deploy, low power consumption, low maintenance cost, easy for operation and maintenance.

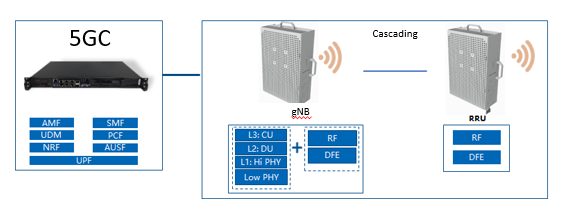

- Supports both BBU cascading and RRU cascading.
- Based on SageRAN`s self-developed L2 L3 protocol stack software and operating system.Support synchronization: GPS,
Base Station Specifications
|
Item |
5G |
LTE |
|
Standard |
3GPP R15 |
3GPP R13 |
|
Capability |
In total 2x 2T2R NR cell and 2x 2T2R LTE cell, And one NR cell and one LTE cell are connected to the RRU via expansion port. |
|
|
System Capability |
Activated users≥200 Connected Users≥400 |
Activated users≥200 Connected Users≥400 |
|
DL:300Mbps，UL:150Mbps, @30MHz |
DL:70Mbps，UL:35Mbps, @10MHz |
|
|
SCS |
15kHz/30kHz |
15kHz |
|
Synchronization |
GPS/Beidou |
|
|
Cascading |
3-level |
|
Radio Specification
|
Item |
5G |
LTE |
|
Frequency |
N28 |
B8 |
|
IBW |
FDD: 30MHz/20MHz/10MHz |
FDD: 10MHz/5MHz |
|
Output Power |
2*60W |
2*60W |
|
Output Power Accuracy |
+/-1.5dB(Room Temperature) |
+/-1.5dB(Room Temperature) |
|
EVM |
QPSK:<18.5% |
QPSK:<17.5% 16QAM:<12.5% 64QAM:<8% |
|
ACLR |
<-45dBc |
<-45dBc |
|
Frequency Error |
<0.05ppm |
<0.05ppm |
|
unwanted emission |
TS 38.104 Category B |
TS 38.104 Category B |
|
Spurious Emission |
TS 38.104 Category B |
TS 38.104 Category B |
|
DL Output Power Dynamics |
>10dB |
>10dB |
|
Transmitter Standard |
Meet 3GPP TS 38.104 |
Meet 3GPP TS 36.104 |
|
Receiver sensitivity |
-104dBm@room temp |
-97dBm@room temp |
|
Receiver Spurious Emissions |
Meet 3GPP TS 38.141-1 |
Meet 3GPP TS 36.141-1 5 |
|
Maximum Input Signal |
0dBm |
0dBm |
|
Blocking Receive |
Meet 3GPP TS 38.104 |
Meet 3GPP TS 36.104 |
