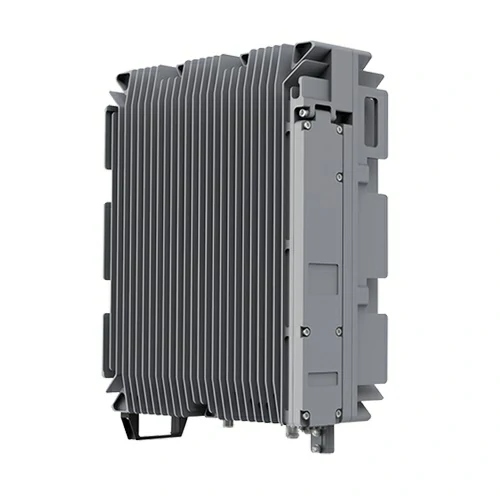

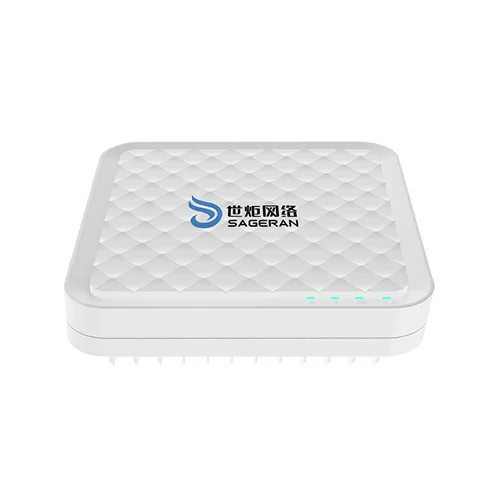

5G mmWave AAU Pro
Download
The 5G mmWave AAU Pro is a enhanced Active Antenna Unit in the XLink™ 5G mmWave distributed small cell solution. It is designed to be used directly with baseband unit (BBU) or in conjunction with the expansion unit (rHUB/EU) to provide 5G wireless signal coverage.
The 5G mmWave AAU Pro can be deployed remotely using fiber optic extension, making it ideal for indoor coverage scenarios.
Features:
Energy-efficient design
High integration, small size & lightweight
Flexible and fast networking
Supports full-format IoT expansion services
High-gain antenna, strong anti-interference, low latency, and high-precision positioning
Networking:
Specifications:
|
Items |
Index |
|
Frequency |
24.25GHz-29.5GHz（N257/N258） |
|
Channels |
2T2R |
|
Duplexing |
TDD |
|
Radio Frequency Bandwidth |
2.75GHz |
|
Carrier Bandwidth |
2x200MHz |
|
Antenna Polarization |
45 ° dual polarization phased array |
|
EIRP |
45dBm|256QAM |
|
50dBm|64QAM |
|
|
EIS |
≤-101dBm |
|
ACLR |
≤-28 dBc |
|
Weight |
4.5kg |
|
Dimension |
297x297x90mm |
